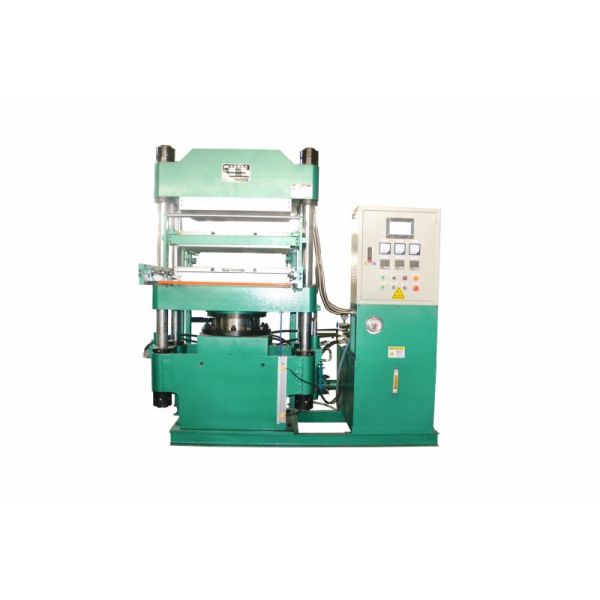

Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification

Brand Name : SFC

Model Number : XLB-D

Certification : CE,ISO9001,SGS

Place of Origin : China

MOQ : 1 set

Price : 5999.00-39999.00USD per Set

Payment Terms : T/T

Supply Ability : 100 Sets/month

Delivery Time : 45 days

Packaging Details : Standard export package

Power(w) : 2.2KW

Type : Vulcanizer

Dimension(l*w*h) : DEPEND ON THE MACHINE SIZE

Application : Vulcanizing Rubber Products

Working layer : 2-4 layers

Product name : Solid Tyre Vulcanizing Press Machine

Contact Now

Solid Tyre Vulcanizing Press Machine & Solid Tire Vulcanizing Machine
Technical Specifications
Model Total Pressure (MN) Daylight (mm) Working Layer Piston Stroke (mm) Motor Power (KW) Overall Dimensions (L×W×H mm)
XLB-600×600×21.0012522502.21880×820×1680
XLB-750×850×41.60125450031730×930×2460
XLB-900×900×22.50200240042345×960×1385
XLB-1200×1200×13.15300130042800×1300×2300
XLB-1300×2000×15.60400140082000×1860×2500
XLB-1500×1500×18.00800180016.52200×2200×4300
XLB-2000×2000×120.004001400113600×3000×3300

The rubber vulcanizer is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products. Being frame type, the machine differs from column type designs, allowing installation of larger diameter hydraulic cylinders with reduced quantity, featuring simple structure and minimal maintenance. The frame can bear more stress and offers competitive pricing, nice surface finish, and easy operation.

Product Images
Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification
Key Features & Highlights
Electrical Control System

Complete control system including wiring, cables, and safety protection devices. Uses automatic time relay to achieve automatic close mold, exhaust, stuffy, vulcanization time, supplement pressure, and open mold processes. Easy switching between automatic and manual control modes.

Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification
Push-Pull Device & Platforms

Push-pull device: Available in hydraulic type or mechanical type options

Up and down platform: Made from Q235 steel plates. Manufactured with automatic cutting baiting, mechanical slicer producing welded groove, and carbon dioxide gas shielded welding for precision.

Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification
Frame Construction

Frame plates are constructed with welded Q235 steel plates, 40mm thickness. Processed through mechanical ball blast rust removal, spraying zinc rich series paint, stress removal, and mechanical production.

Machine Advantages
  • Simple and convenient structure with flexible operation and commodious space
  • Cylinder and plunger made from high-quality materials
  • Hydraulic station and electric cabinet located on both sides of main engine
  • Convenient operation
  • No oil spilling or pressure loss
  • Excellent reputation
  • CE Standards compliance
Delivery & Payment Terms

Delivery Lead Time: 35-40 days after receiving deposit

Packing Methods:
  • Wrapped with stretch film to prevent surface paint damage
  • Custom wooden packaging available
  • Key parts (electronic control box) wrapped with shockproof materials and packed in wooden cases
Payment Terms:
  • T/T (30% deposit, 70% balance against B/L copy)
  • L/C (Letter of Credit)
Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification
Our Services
  • Overseas service and technical support available
  • Timely machine dispatch within stipulated timeframes
  • 24-hour online service with immediate response
  • Machine testing available to ensure customer satisfaction
  • Custom design services, drawing creation, and OEM rubber machine acceptance
  • Shipment arrangement with 7-day advance notification before order completion
Related Products

We also manufacture:

  • Rubber tiles vulcanizing press
  • Pillar type plate vulcanizing press
Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification Solid Tyre Vulcanizing Press Machine with 2.2KW Motor Power Frame Type Structure and CE ISO Certification
About Our Company

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is a Chinese manufacturer established in 2007 with over 10 years of experience in manufacturing various rubber machines. We hold ISO 9001:2008, SGS, and CE certifications.

Our Product Range:
  • Rubber kneader/rubber mixing mill
  • Various plate vulcanizing presses
  • 2 roll/3 roll/4 roll rubber calenders
  • Rubber batch off coolers
  • Waste tire recycling lines
  • Reclaimed rubber production lines
  • Conveyor belt production lines
  • Rubber seals extruding & vulcanizing lines
Global Market:

Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka, and many other countries and regions.

Custom Services:

Our professional engineers and teams accept OEM/ODM machines based on customer requirements. Overseas engineer services are available.
