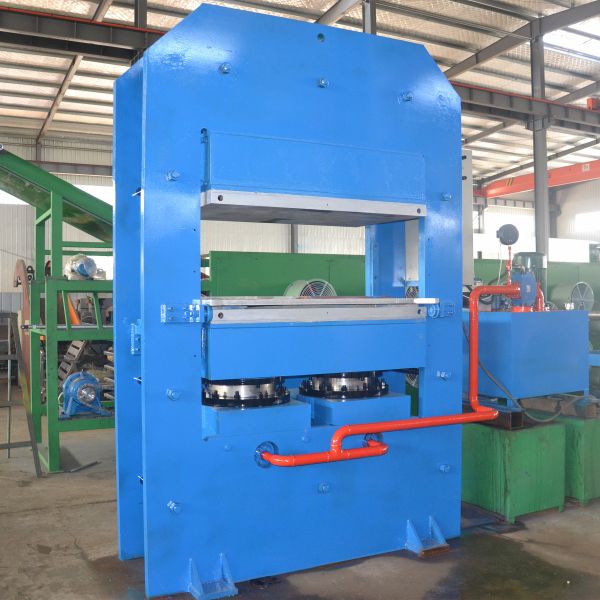

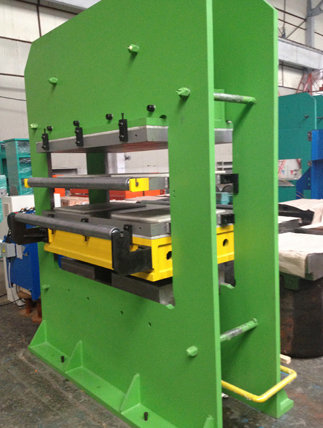

Rubber Product Hydraulic Frame-type Vulcanizing Press
Main Usage
The frame type plate rubber hydraulic press applies to vulcanize all kinds of rubber and plastic mould products as well as non-mould products.
Company Introduction
Our factory has nearly 20 years' experience in manufacturing rubber machinery. Our products include rubber mixing mills, rubber kneaders, rubber calenders, rubber vulcanizing presses, waste tire recycling lines, batch-off coolers, rubber extruders, rubber strainers, rubber cutters, conveyor belt splicing machines, rubber crushers, and rubber powder making machines. Our customers are spread worldwide, including the United States, Malaysia, Thailand, India, Mexico, Russia, Australia, South Africa, and more.
Features
- Our hydraulic presses have passed ISO 9001 certification, ensuring quality assurance
- Hydraulic presses ranging from 50 to 2500 tons are manufactured with operation safety and optimum machine production in mind
- Controls and hydraulic system are perfectly matched to ensure complete customer satisfaction
- The frame is fabricated from tested-quality steel profiles and plates with computer-aided design for maximum rigidity and longer life
- Low noise powerful hydraulic unit designed with latest standards and quality components
- Energy-efficient operation with motor stopping during curing period to reduce electricity consumption
- Adjustable speed control with preset limit switches for optimized production
Technical Parameters
We can design and manufacture various rubber hydraulic presses according to your specific requirements.
| Model |
Total Pressure |
Daylight (mm) |
Working Layer |
Piston Stroke (mm) |
Main Motor Power (KW) |
Overall Dimensions (LxWxH)(mm) |
| XLB-350x350x2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200x580x1200 |
| XLB-400x400x2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400x500x1400 |
| XLB-600x600x2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880x820x1680 |
| XLB-750x850x4 | 1.60 | 125 | 4 | 500 | 3 | 1730x930x2460 |
| XLB-900x900x2 | 2.5 | 200 | 2 | 400 | 4 | 2345x960x1385 |
| XLB-1200x1200x1 | 3.15 | 300 | 1 | 300 | 4 | 2800x1300x2300 |
| XLB-1300x2000x1 | 5.60 | 400 | 1 | 400 | 8 | 2000x1860x2500 |
| XLB-1500x1500x1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200x2200x4300 |
| XLB-1500x2500x1 | 15.00 | 400 | 1 | 400 | 11 | 3000x2500x3300 |
| XLB-2000x2000x1 | 20.00 | 400 | 1 | 400 | 11 | 3600x3000x3300 |
Frequently Asked Questions
What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2-3 days. Big production line usually takes about 30 days.
How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show the user around us.
How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
Our Services
- Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
- In the process of production, we will take photos and send to customers for their track the progress.
- Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
- We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
- We supply overseas engineer service and help to train your workers to operate the machine.
