PLC Control Frame-type Plate Rubber Vulcanizing Machine with Customized Cylinder Stroke and 0-100MPa Pressure Range

Brand Name : SFC

Model Number : XLB-1300x2000 x1

Certification : CE、ISO9001、SGS

Place of Origin : China

MOQ : 1

Price : US$5999.00-80000.00/set

Payment Terms : L/C,T/T

Supply Ability : 500sets/year

Delivery Time : 65 days

Packaging Details : Safety wood or plywood crates packaging.

Control System : PLC

Cylinder Stroke : Customized

Heating Method : Electric/Steam/Oil

Material : Carbon Steel/Stainless Steel

Operation Mode : Manual/Semi-automatic/Automatic

Power : 7.5-75KW

Pressure Range : 0-100MPa

Product Name : Rubber Vulcanizing Press Machine

Size : Customized

Temperature Range : 0-400℃

Voltage : 220V/380V/440V

Warranty : 1 Year

Weight : Customized

Contact Now

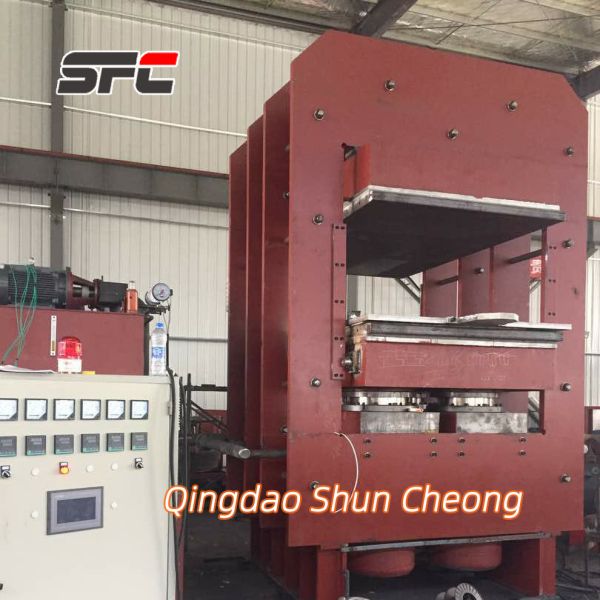

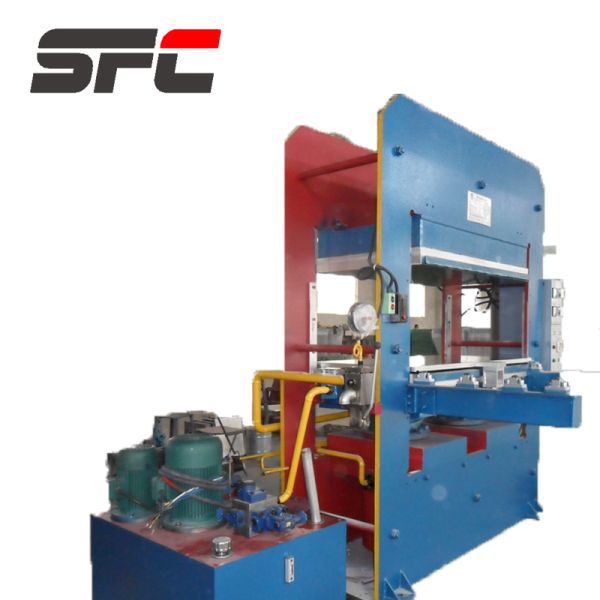

Factory Price Frame-Type Plate Rubber Vulcanizing Machine

This industrial vulcanizing machine is designed for pressing rubber mold products and thermosetting plastic products, including seals, engineering rubber components, and rubber sheets. The frame-type construction provides substantial pressure per unit area, ensuring superior product quality. Optional push-pull die devices can be configured to reduce labor intensity, with control options ranging from manual operation to electric or PLC-based automation.

Key Features & Customization Options

Advanced Control Systems: Customizable automation with programmable logic controllers (PLCs), touch-screen interfaces, data logging, and remote monitoring capabilities
Versatile Accessories: Available options include mold holders, temperature control units, and automated loading/unloading systems tailored to specific production requirements
Factory Visits Welcome: We invite customers to tour our manufacturing facility

PLC Control Frame-type Plate Rubber Vulcanizing Machine with Customized Cylinder Stroke and 0-100MPa Pressure Range

Technical Specifications

Product Model	XLB-1300x2000 x1	XLB-1500x1500x1	XLB-1500x2500x1	XLB-2000x2000x1
Total Press (MN)	5.60	8.00	15.00	20.00
Plate Size (mm)	1300x2000	1500x1500	1500x2500	2000x2000
Plate Daylight (mm)	400	800	400	400
Working Layer	1	1	1	1
Piston Stroke (mm)	400	800	400	400
Unit Press (Mpa)	2.2	3.6	4.0	5.0
Main Motor Power (kw)	8	16.5	11	11
Overall Size (mm)	2000x1860x2500	2200x2200x4300	3000x2500x3300	3600x3000x3300
