Frame-type Plate Rubber Vulcanizing Press Machine with PLC Control, Customizable Pressure Range, and Electric/Steam/Oil Heating

Qingdao Shun Cheong Rubber machinery Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Frame-type Plate Rubber Vulcanizing Press Machine with PLC Control, Customizable Pressure Range, and Electric/Steam/Oil Heating

Brand Name : SFC

Model Number : XLB-1300x2000 x1

Certification : CE、ISO9001、SGS

Place of Origin : China

MOQ : 1

Price : US$5999.00-59999.00/set

Payment Terms : T/T

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : Export standard packaging.

Control System : PLC

Cylinder Stroke : Customized

Heating Method : Electric/Steam/Oil

Material : Carbon Steel/Stainless Steel

Operation Mode : Manual/Semi-automatic/Automatic

Power : 7.5-75KW

Pressure Range : 0-100MPa

Product Name : Rubber Vulcanizing Press Machine

Size : Customized

Temperature Range : 0-400℃

Voltage : 220V/380V/440V

Warranty : 1 Year

Weight : Customized

Contact Now

Frame-type Plate Rubber Vulcanizing Press Machine Customization
This machine is used to press rubber mold products and thermosetting plastic products with corresponding specifications of seals, engineering rubber, rubber sheets, etc. This series of products has a large pressure per unit area, ensuring the quality of the product. According to the process requirements of the product, a push-pull die device can be configured to reduce labor intensity; manual control, electric control or PLC control can be implemented according to customer requirements.
Ayla
Business Manager
Email: sales-6@sfcjx.com
Customization Features
  • Automation and Control: Customizable with programmable logic controllers (PLCs), touch-screen interfaces, data logging capabilities, and remote monitoring options for improved operational efficiency.
  • Heating Plate Configuration: Configurable heating plates with high-grade materials for excellent heat conductivity and efficient heat transfer to rubber material.
  • Customizable Accessories: Various accessories including mold holders, mold temperature control units, loading and unloading systems, and other auxiliary equipment tailored to specific production needs.

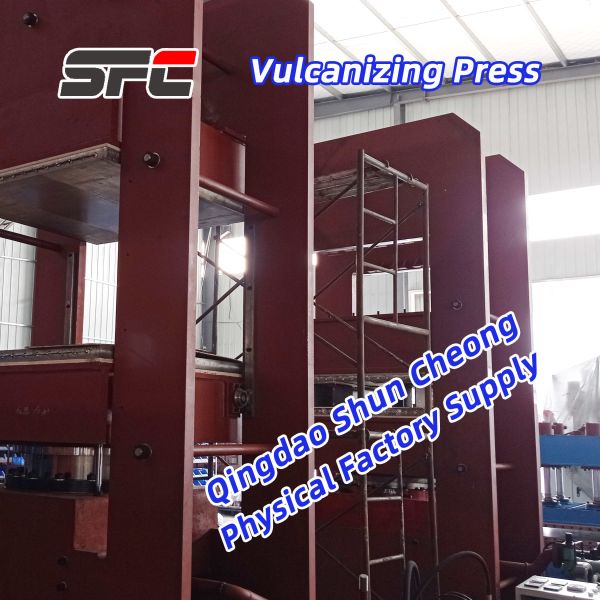

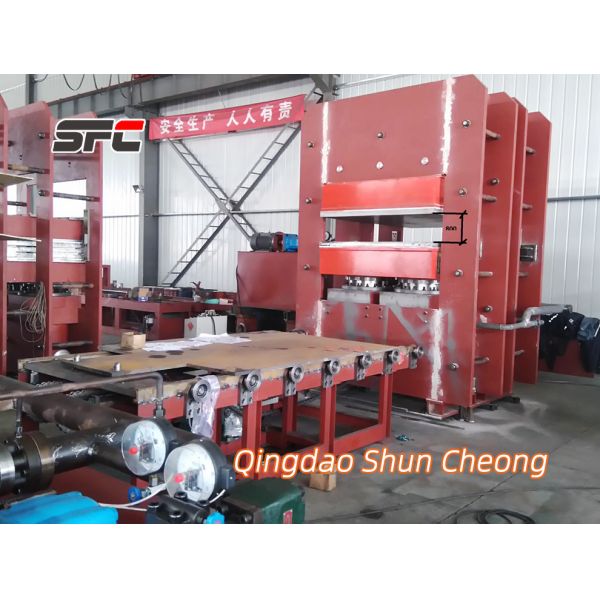

Reference Photos
Technical Parameters
Product Model XLB-1300x2000 x1 XLB-1500x1500x1 XLB-1500x2500x1 XLB-2000x2000x1
Total Press (MN) 5.60 8.00 15.00 20.00
Plate Size(mm) 1300x2000 1500x1500 1500x2500 2000x2000
Plate Daylight (mm) 400 800 400 400
Working Layer 1 1 1 1
Piston Stroke(mm) 400 800 400 400
Unit Press(Mpa) 2.2 3.6 4.0 5.0
Main Motor Power(kw) 8 16.5 11 11
Overall Size(mm) 2000x1860x2500 2200x2200x4300 3000x2500x3300 3600x3000x3300
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specializing in the production of rubber machinery of high and new technology backbone enterprises. The company passed the ISO9001:2015 quality management system certification, the European Union CE certification and Switzerland SGS certification.
Product Range: Tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.
Main Equipment: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer, etc.
Global Reach: Products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, Kazakhstan and more than 50 countries and regions.
Quality Commitment
  • Every part passes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Comprehensive free technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support and on-site repair services when needed
